RR (Recline and Rotate) Pallet Inverter



The RR Type 2 Inverter is the smallest model in the range.

Offers floor level access for loads of up to 1000 Kgs in weight and 1400mm in height.

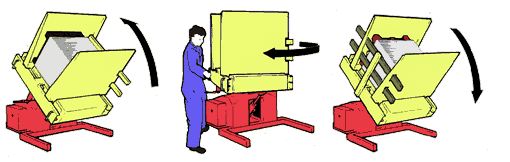

It clamps and reclines under hydraulic power and revolves easily by hand.

All RR Type 2 Inverters are painted with two coats of zinc primer and a 2 pack epoxy acrylic top coat as standard.









RR TYPE 2 INVERTER SPECIFICATION:



Jaw opening            1.40m MAX 0.38m MIN

Loading tables            1.30m wide x 1.00m deep

Loading capacity            1000 kgs

Power supply            3ph, 400V 16A

Motor size            2.2kw

Weight            1400kgs

Guarding : Mesh guards at foot level

Controls:  dual levers on a short arm with option of extended push button controls

Operating Space            2.70m x 1.94m

Shipping Dimensions            1.94m x 2.69m x 1.40m

Special sized models built to customer specification
