Pole Attachments
CARRIAGE mounted or FORK mounted models

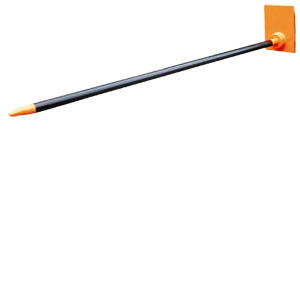

Carriage Mounted Poles
Suitable for a variety of applications when the lifting and repositioning of a coiled product is required such as fabric, carpets, paper rolls, linings. Fitted directly onto the carriage of the forklift, thus maintaining the truck optimum lifting capacity.
Standard Features:
High tensile machined pole with tapered tip to ease location into coiled product
Smooth surface finish to protect the intended load to be lifted
Quick release bottom hangers supplied as standard
Painted bright orange for safety
Specifications:
| Model | ITA/FEM class | Boom dia (mm) | Length (mm) | Capacity (kg) | Load centre (mm) |
| ICP-1 | 2A | 70 | 3000 | 500 | 2000 |
| ICP-2 | 2A | 75 | 3000 | 600 | 2000 |
| ICP-3 | 3A | 75 | 3000 | 600 | 2000 |
| ICP-4 | 2B | 70 | 3900 | 500 | 2500 |
| ICP-5 | 2A | 70 | 2000 | 500 | 1000 |
| ICP-6 | 2A | 70 | 1600 | 500 | 800 |
| ICP-7 | 2A | 70 | 3700 | 500 | 2500 |
| ICP-8 | 2A | 75 | 1600 | 500 | 800 |
| ICP-9 | 2A | 75 | 3700 | 600 | 2500 |
Fork Mounted Poles
As with the Carriage Mounted Pole the Fork Mounted Pole is capable of lifting a variety of coiled products, but is usually used in a low volume/occasion usage environment with a mixed pallet/coiled product application.
Standard Features:
High tensile machined pole with tapered tip to ease location into coiled product
Smooth surface finish to protect the intended load to be lifted
Quick release bottom hangers supplied as standard
Painted bright orange for safety
Specifications:
| Model | Boom dia (mm) | Effective length (mm) | Capacity (kg) | Load centre (mm) | Max fork (mm) | Fork centres (mm) |
| IFB-1 | 70 | 3000 | 500 | 2000 | 125 x 50 | 230 |
| IFB-2 | 75 | 3000 | 750 | 2000 | 125 x 50 | 230 |
| IFB-3 | 75 | 3000 | 750 | 2500 | 125 x 50 | 230 |
