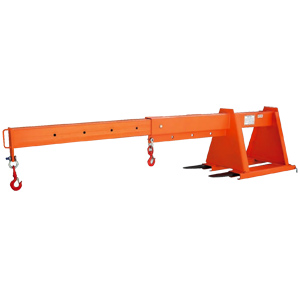

Fork Mounted Extending Jib

Like the Fork Mounted Jib, the extending version allows the movement of long and awkward loads from inaccessible locations, but with up to 9 different lifting positions and with the added benefit of two hooks and shackles so as to ‘cradle’ your load.



Standard Features:

Multi hook positioning from 1000 – 3000 load centres

Supplied complete with 2 No swivel hooks and bowshackles

Zinc plated heel pins for safe attachment to truck

Painted bright orange for safety



Specifications:



Model	Capacity  @ centres (mm)									Max Fork Size	Fork Spread	Centre of Gravity
	1000	1250	1500	1750	2000	2250	2500	2750	3000	(mm)	(mm)	(mm)
IEJ1.0	1000	900	800	700	600	500	400	300	200	150 x 50	600	740
IEJ1.5	1500	1250	1100	1000	800	700	600	500	400	150 x 50	600	740
IEJ2.0	2000	1500	1350	1200	1000	800	700	600	400	150 x 50	600	750
IEJ3.0	3000	2000	1750	1500	1250	1000	900	800	700	150 x 50	600	750
IEJ4.0	4000	3000	2750	2400	2000	1500	1250	1000	850	150 x 50	600	750
