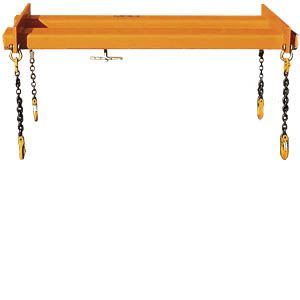

Battery Lifting Beam





Battery Lifting Beams are specifically designed for the removal of battery boxes from forklifts safely. Supplied as standard fork mounted, but can be manufactured with a lifting eye for an overhead crane.



Standard Features:

Supplied with 4 single drop chains with hook

Six lifting points supplied as standard

Zinc plated twist screws for safe attachment to truck

Painted bright orange for safety



Specifications:



Model	Capacity (kg)	Lifting point centres (mm)	Max fork (mm)	Fork centres (mm)
ILB-1	1000	1200 x 570 (outer)	125 x 50	340
ILB-2	2000	1200 x 570 (outer)	125 x 50	340
